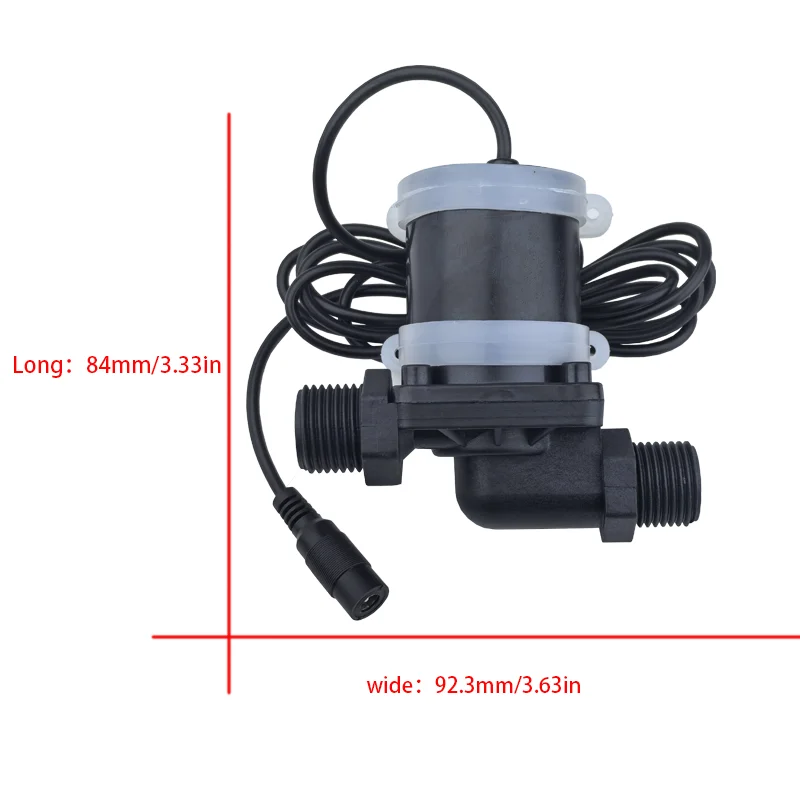

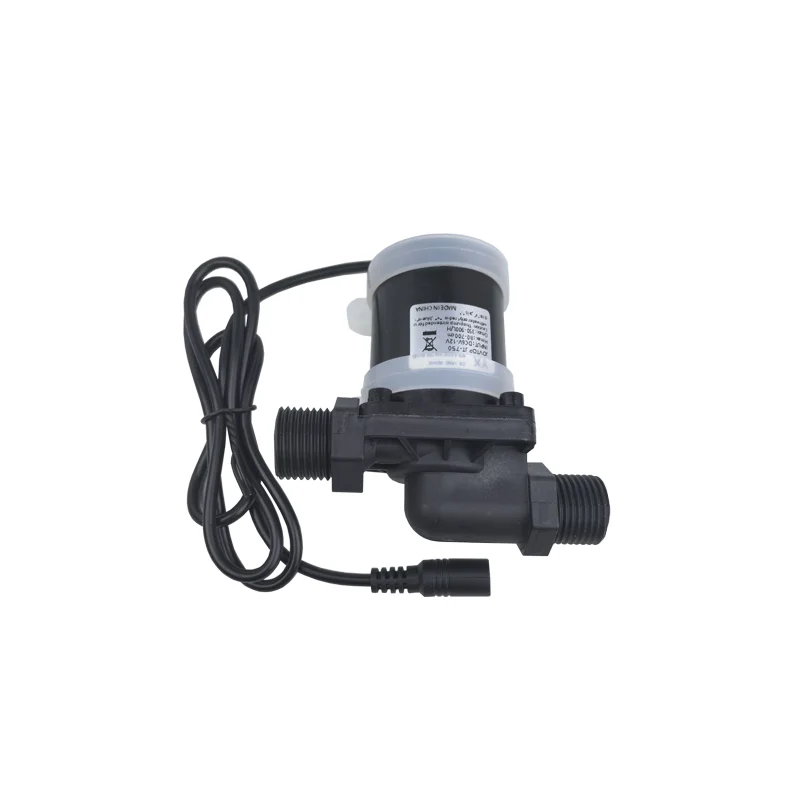

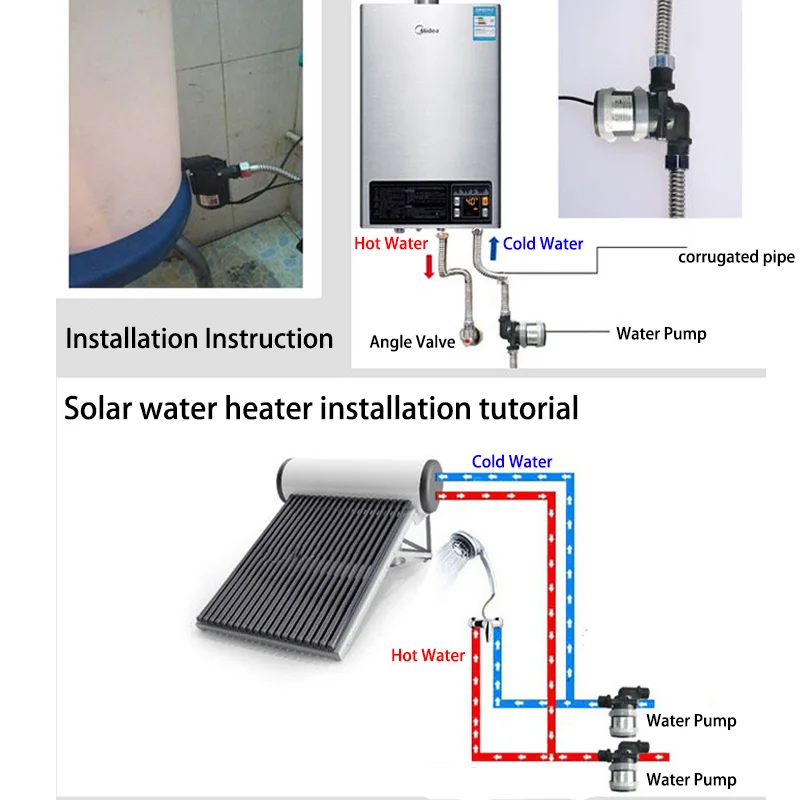

900L/H miniature brushless DC booster pump with a head of 7M, warm air water-cooled circulation pump, solar water heater

Product Description

900L/H miniature brushless DC booster pump with a head of 7M, warm air water-cooled circulation pump, solar water heater

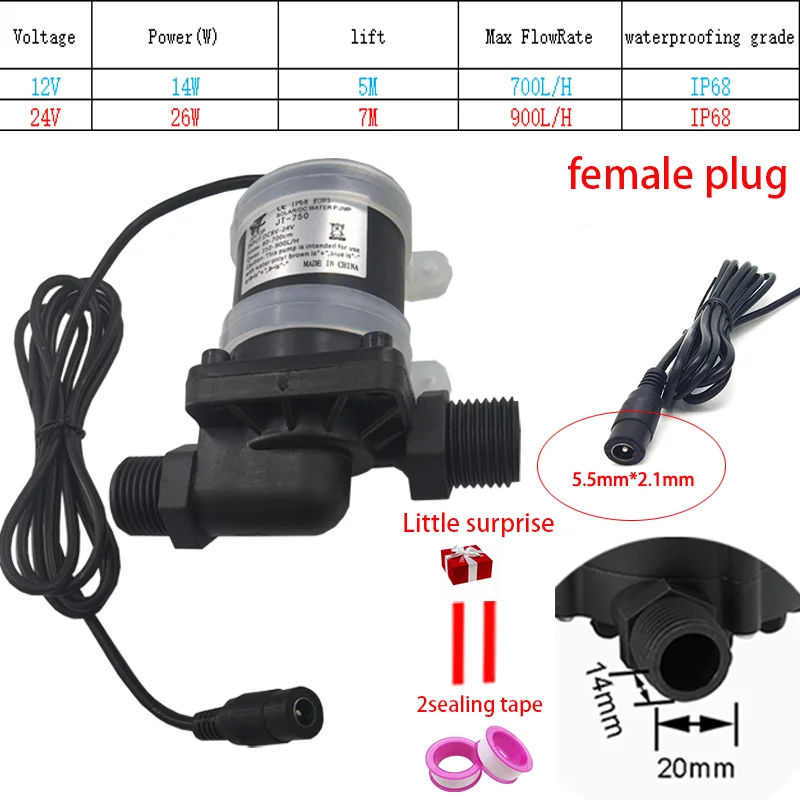

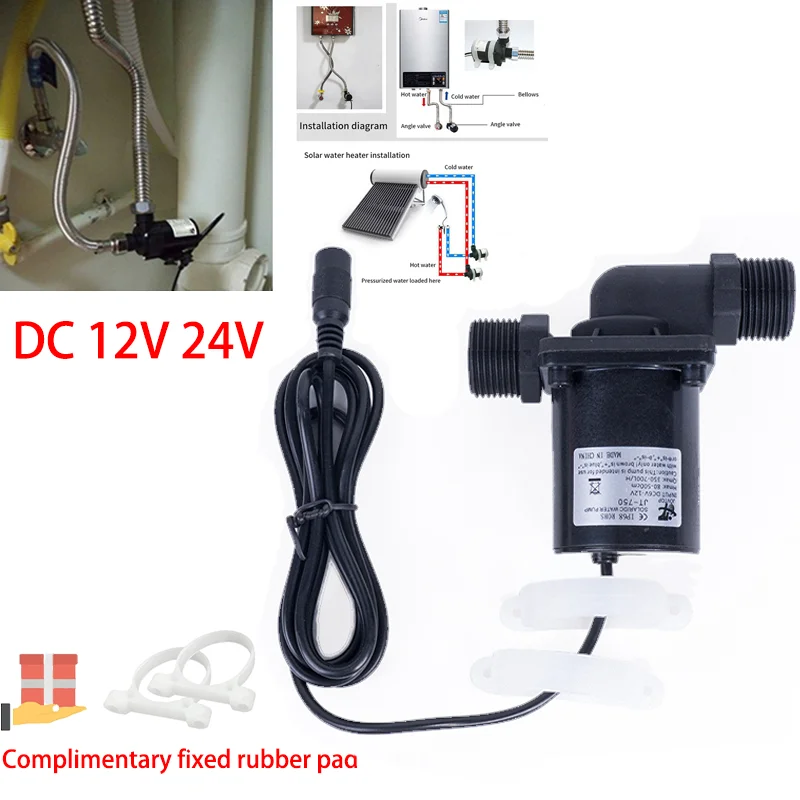

VoltageScope(DC): 12V/24V
Current(A): 1.4A/1.1A
Power(W): 14/26
Max WaterHead(M): 5/7
Max FlowRate (L/H): 700/800
Starting Voltage: 6
Waterproofing grade: IP68
Ambient temperature: -20 degrees to 100 degrees
Ambient humidity: 90% RH or less
Use medium temperature: -20 degrees to 100 degrees
Use medium: water, alcohol, diesel, etc.
Lifetime: ≥30000H
Insulation withstand voltage test: 1500V 60 seconds
Unpitched sound: ≤35dB
Pump housing material: PA66+30% glass fiber
Magnet material: ferrite permanent magnet
Enamelled copper wire: 2UEW temperature resistance 150 degrees
Rotor material: POM
Wire frame material: nylon material PA66
Power cord material: PVC
Shaft material: 316 stainless steel
Precautions for use:
1. The water pump is a DC water pump, and the voltage must be DC power supply (such as battery, DC power supply marked with DC, transformer), and the voltage can be used within the specified voltage range.
2. It is strictly forbidden to dry for a long time without water
3. It is strictly forbidden to use in acidic and alkaline solutions.
4. It is strictly forbidden to use in the liquid of impurities and magnetically permeable particles larger than 0.35MM. If the water quality is too dirty, it is necessary to clean the impurities in the pump pump chamber in time.

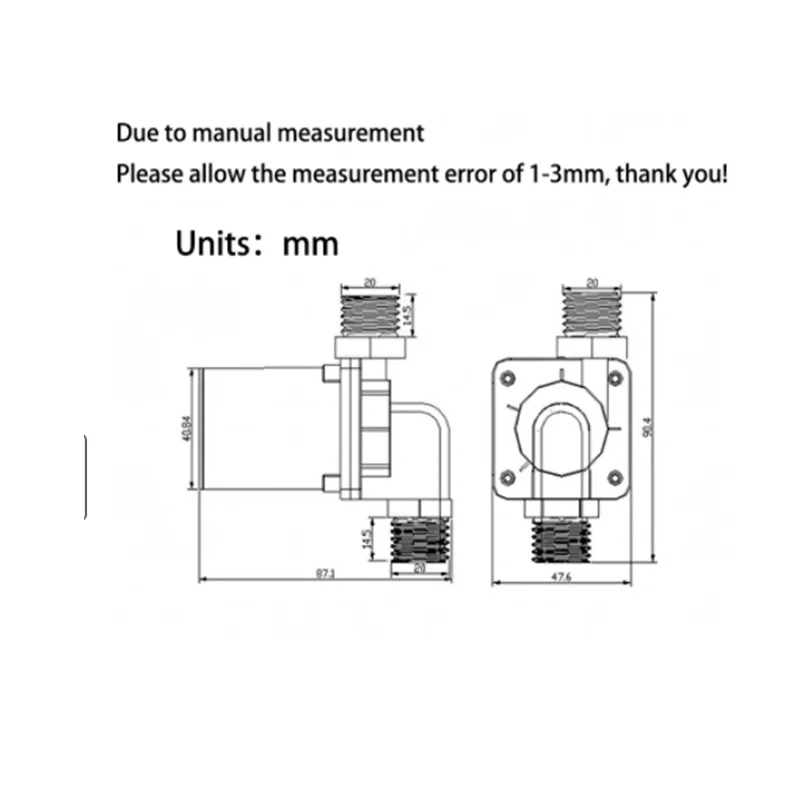

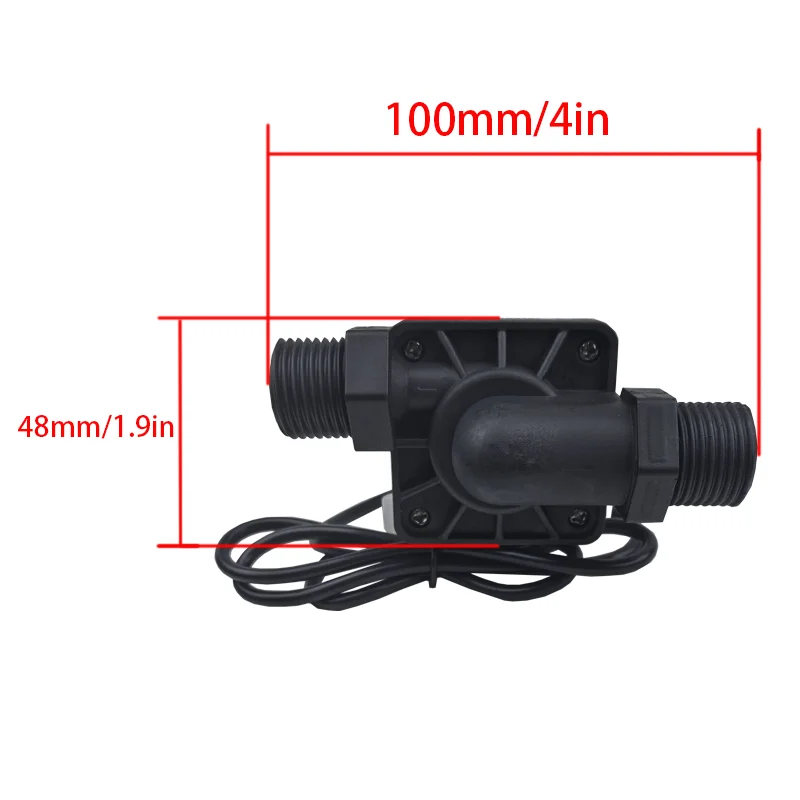

5.Since it is manual measurement, please allow 1-3mm measurement error before payment, thank you!
6.If you are a wholesaler, please contact me, I will give you a favorable price
