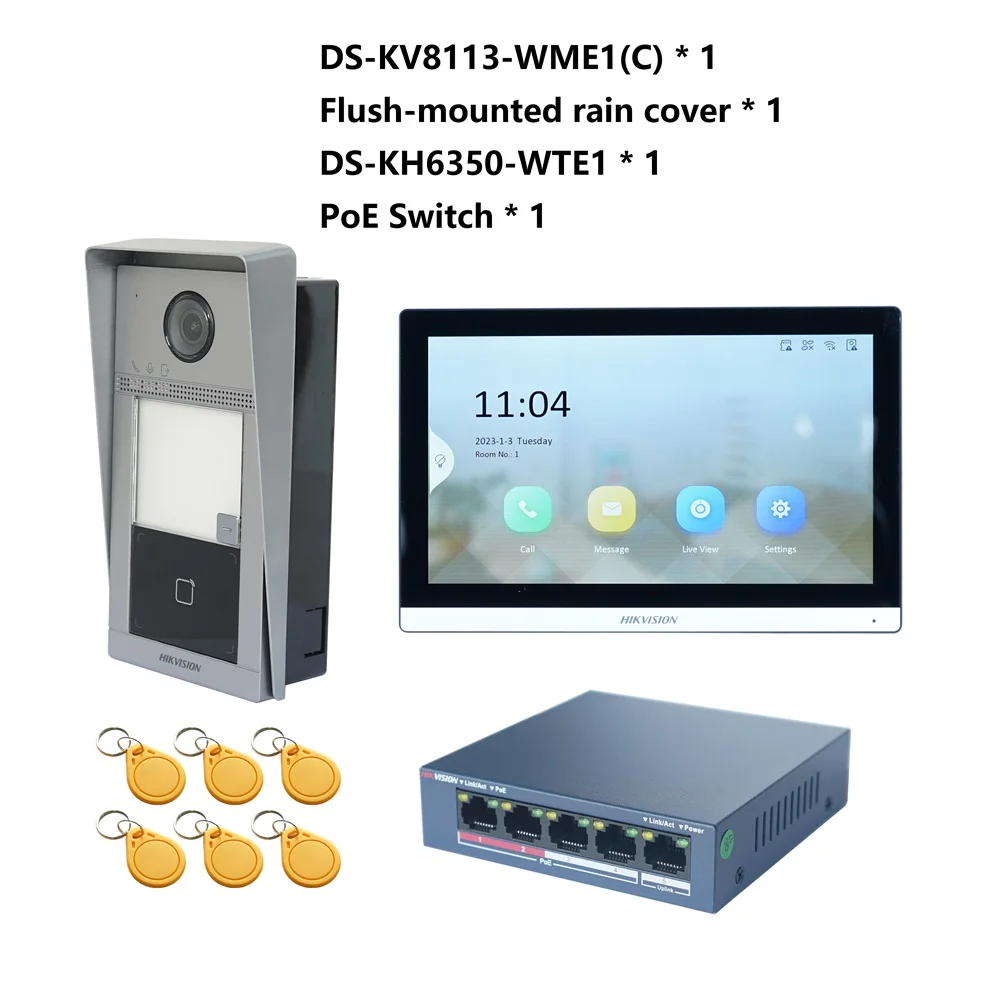

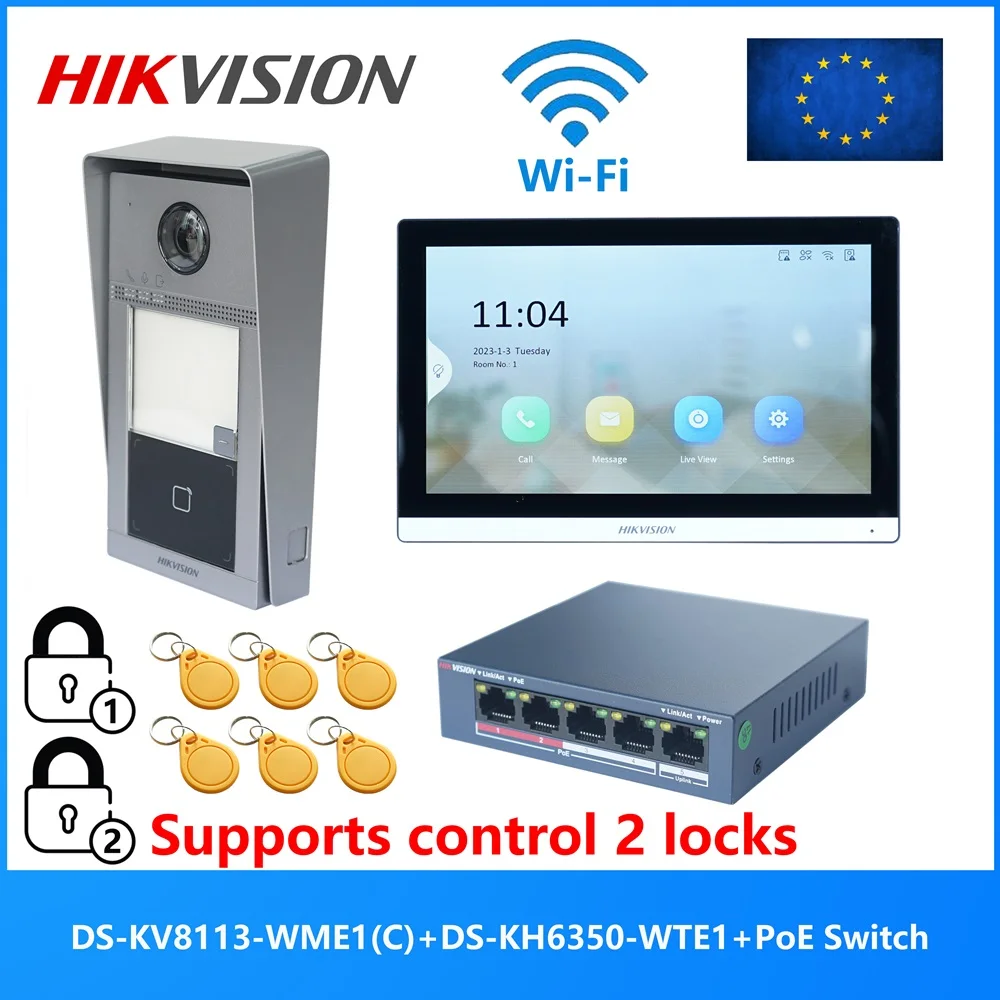

HIKVISION Original Multi-language POE Video intercom KIT,include DS-KV8113-WME1(C) & DS-KH6350-WTE1 & PoE Switch
Join our Facebook page!
Join our Telegram channel!
No price differences The price shown is the original price!
We present all the discounts from the AliExpress website!
The website is updated on a daily basis!
Publishes everything on social media!
We are the largest affiliate site in the world
Original price was: $657.00.$265.00Current price is: $265.00.
Product Description
Scenes 2 : use WIFI connection

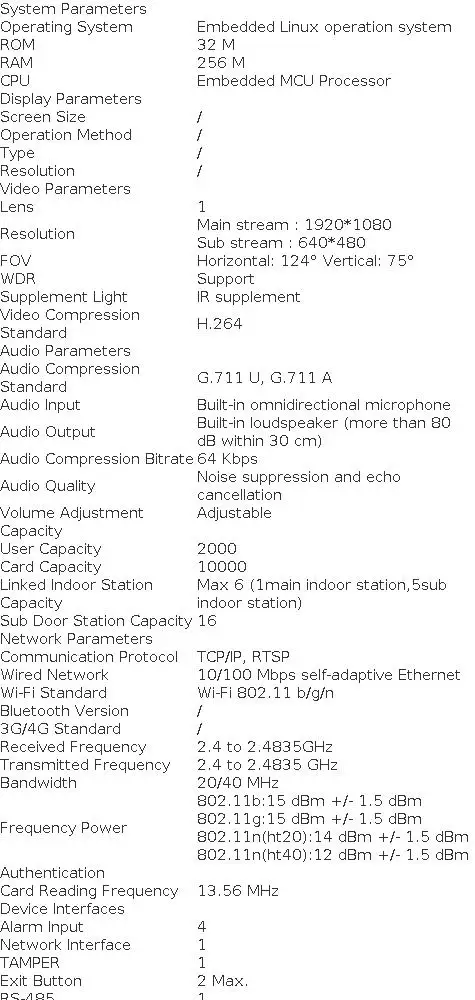

Doorbell data sheet
|
System Parameters |
|
|
Operating System |
Embedded Linux operation system |
|
ROM |
32 M |
|
RAM |
256 M |
|
CPU |
Embedded MCU Processor |
|
Display Parameters |
|
|
Screen Size |
/ |
|
Operation Method |
/ |
|
Type |
/ |
|
Resolution |
/ |
|
Video Parameters |
|
|
Lens |
1 |
|
Resolution |
Main stream : 1920*1080 |
|
Sub stream : 640*480 |
|
|
FOV |
Horizontal: 124° Vertical: 75° |
|
WDR |
Support |
|
Supplement Light |
IR supplement |
|
Video Compression Standard |
H.264 |
|
Audio Parameters |
|
|
Audio Compression Standard |
G.711 U, G.711 A |
|
Audio Input |
Built-in omnidirectional microphone |
|
Audio Output |
Built-in loudspeaker (more than 80 dB within 30 cm) |
|
Audio Compression Bitrate |
64 Kbps |
|
Audio Quality |
Noise suppression and echo cancellation |
|
Volume Adjustment |
Adjustable |
|
Capacity |
|
|
User Capacity |
2000 |
|
Card Capacity |
10000 |
|
Linked Indoor Station Capacity |
Max 6 (1main indoor station,5sub indoor station) |
|
Sub Door Station Capacity |
16 |
|
Network Parameters |
|
|
Communication Protocol |
TCP/IP, RTSP |
|
Wired Network |
10/100 Mbps self-adaptive Ethernet |
|
Wi-Fi Standard |
Wi-Fi 802.11 b/g/n |
|
Bluetooth Version |
/ |
|
3G/4G Standard |
/ |
|
Received Frequency |
2.4 to 2.4835GHz |
|
Transmitted Frequency |
2.4 to 2.4835 GHz |
|
Bandwidth |
20/40 MHz |
|
Frequency Power |
802.11b:15 dBm +/- 1.5 dBm |
|
802.11g:15 dBm +/- 1.5 dBm |
|
|
802.11n(ht20):14 dBm +/- 1.5 dBm |
|
|
802.11n(ht40):12 dBm +/- 1.5 dBm |
|
|
Authentication |
|
|
Card Reading Frequency |
13.56 MHz |
|
Device Interfaces |
|
|
Alarm Input |
4 |
|
Network Interface |
1 |
|
TAMPER |
1 |
|
Exit Button |
2 Max. |
|

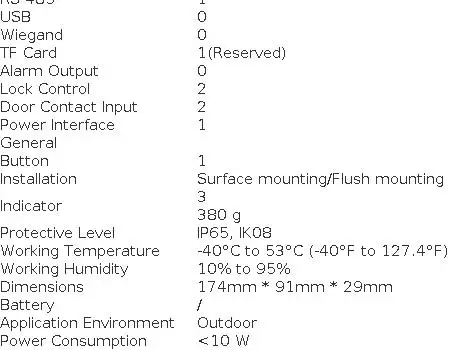

RS-485 |
1 |
|
USB |
0 |
|
Wiegand |
0 |
|
TF Card |
1(Reserved) |
|
Alarm Output |
0 |
|
Lock Control |
2 |
|
Door Contact Input |
2 |
|
Power Interface |
1 |
|
General |
|
|
Button |
1 |
|
Installation |
Surface mounting/Flush mounting |
|
Indicator |
3 |
|
380 g |
|
|
Protective Level |
IP65, IK08 |
|
Working Temperature |
-40°C to 53°C (-40°F to 127.4°F) |
|
Working Humidity |
10% to 95% |
|

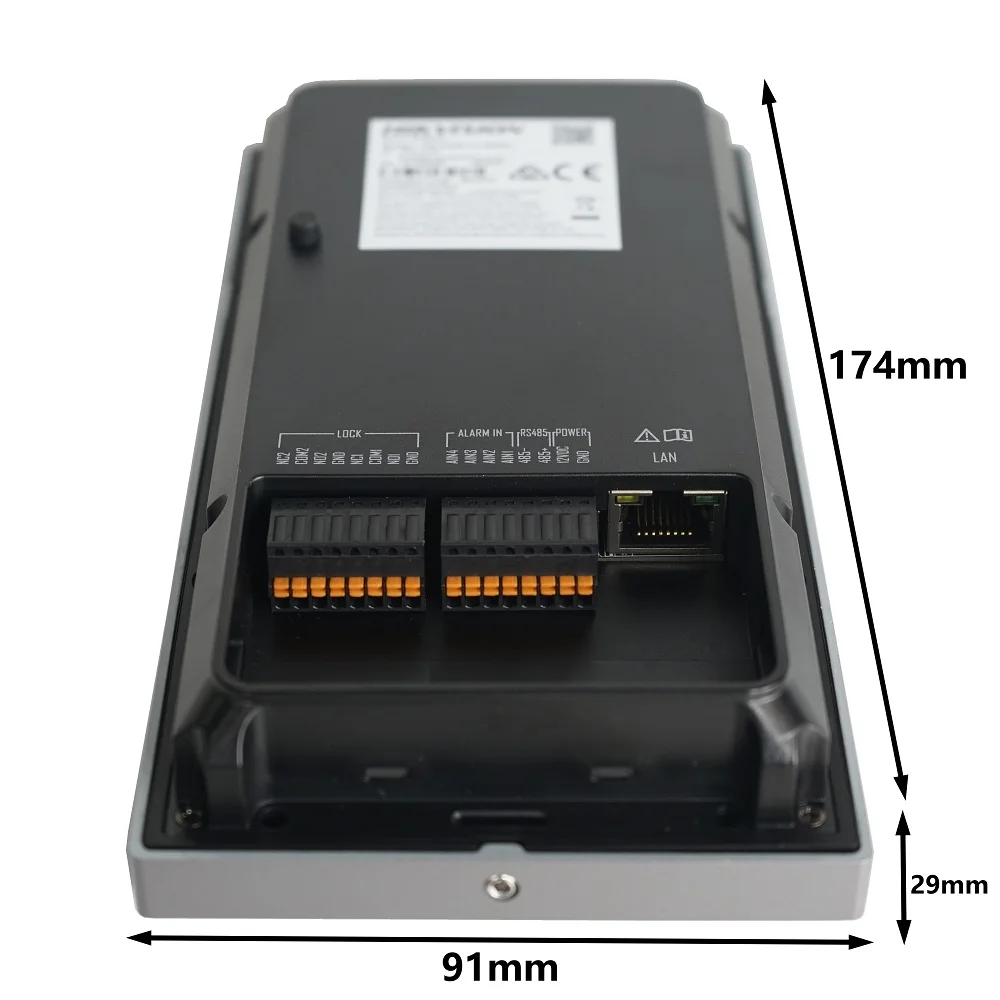

Dimensions |
174mm * 91mm * 29mm |
|
Battery |
/ |
|
Application Environment |
Outdoor |
|
Power Consumption |
<10 W |

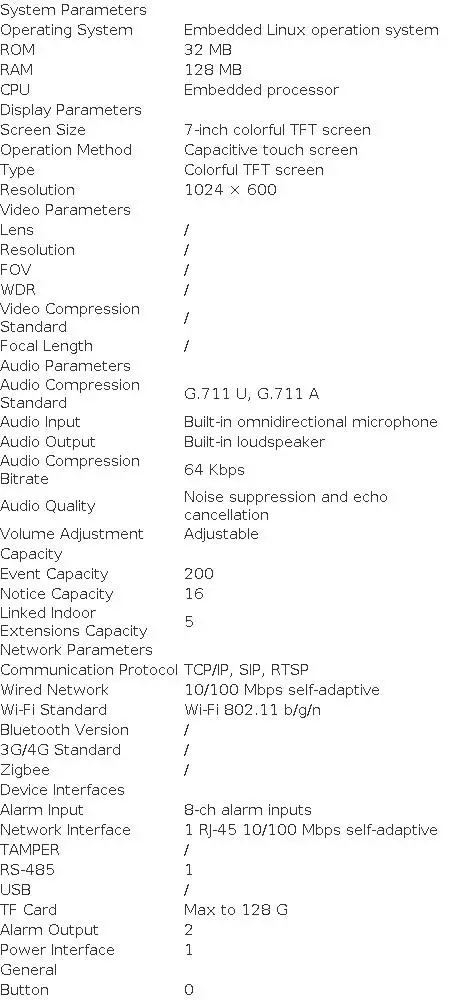

Indoor monitor data sheet
|
System Parameters |
|
|
Operating System |
Embedded Linux operation system |
|
ROM |
32 MB |
|
RAM |
128 MB |
|
CPU |
Embedded processor |
|
Display Parameters |
|
|
Screen Size |
7-inch colorful TFT screen |
|
Operation Method |
Capacitive touch screen |
|
Type |
Colorful TFT screen |
|
Resolution |
1024 × 600 |
|
Video Parameters |
|
|
Lens |
/ |
|
Resolution |
/ |
|
FOV |
/ |
|
WDR |
/ |
|
Video Compression Standard |
/ |
|
Focal Length |
/ |
|
Audio Parameters |
|
|
Audio Compression Standard |
G.711 U, G.711 A |
|
Audio Input |
Built-in omnidirectional microphone |
|
Audio Output |
Built-in loudspeaker |
|
Audio Compression Bitrate |
64 Kbps |
|
Audio Quality |
Noise suppression and echo cancellation |
|
Volume Adjustment |
Adjustable |
|
Capacity |
|
|
Event Capacity |
200 |
|
Notice Capacity |
16 |
|
Linked Indoor Extensions Capacity |
5 |
|
Network Parameters |
|
|
Communication Protocol |
TCP/IP, SIP, RTSP |
|
Wired Network |
10/100 Mbps self-adaptive |
|
Wi-Fi Standard |
Wi-Fi 802.11 b/g/n |
|
Bluetooth Version |
/ |
|
3G/4G Standard |
/ |
|
Zigbee |
/ |
|
Device Interfaces |
|
|
Alarm Input |
8-ch alarm inputs |
|
Network Interface |
1 RJ-45 10/100 Mbps self-adaptive |
|
TAMPER |
/ |
|
RS-485 |
1 |
|
USB |
/ |
|
TF Card |
Max to 128 G |
|
Alarm Output |
2 |
|
Power Interface |
1 |
|
General |
|
|
Button |
0 |
|
Installation |
Wall mounting, table mounting |
|
Indicator |
0 |
|
With package: 683 g |
|
|
Without package: 355 g |
|
|
Protective Level |
/ |
|
Working Temperature |
-10 °C to 50 °C (14 °F to 122 °F) |
|
Working Humidity |
10% to 90% |
|
Dimensions |
175 mm × 113.5 mm × 21 mm (6.9″ × 4.5″ × 0.83″) |
|
Battery |
/ |
|
Application Environment |
Indoor |
|
Power Consumption |
≤ 8 W |
Support motion detection alarm to client software
Support for adding outdoor stations to Synology NAS recording and playback
| Weight | 1.600 kg |
|---|---|
| Dimensions | 20 × 17 × 13 cm |
| Brand Name | HIKVISION |
| Connection Method | Wired |
| Camera Sensor type | CMOS |
| Hign-concerned Chemical | None |
| Origin | Mainland |
| Answering Mode | hands-free |
| Display Screen Size(inch) | 7 |
| Display Screen Type | Color Touch Screen |
| Zone Input | 4 |
| Access Control | Inductive Card |
| Type | intercom system |
| Waterproof | Yes |
| Smart home platform | none |
| IP Camera Interface | No |
| Samrt Home Interface | Yes |
| Installation | Surface or Flush |
| Connection Type | Wired |
| Certification | CE, FCC |
| Plug Type | Eu plug, US PLUG, AU Plug, UK Plug |
| Power | IEEE802.3af, standard PoE 12 VDC, 10 W |
| Model Number | DS-KV8113-WME1(C) DS-KH6350-WTE1 |
| Sensor Size(Inch) | 1/3 |
| Camera | COLOR |
| Viewing Angle (°) | Horizontal: 124°; Vertical: 75°; |
| Size | 174mm*91mm*29mm |
| Doorbell | Yes |
| Technology | DIGITAL |
Add a review
You must be logged in to post a review.
All original as described

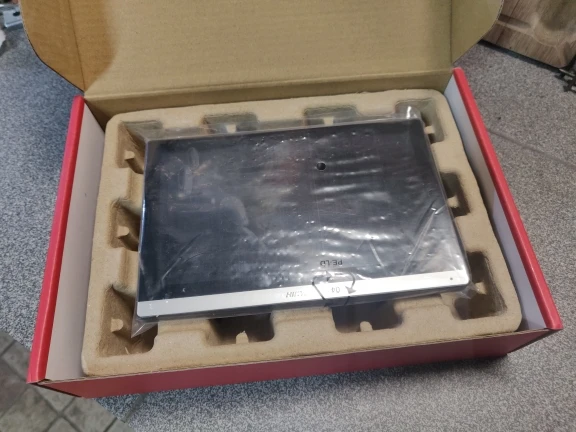

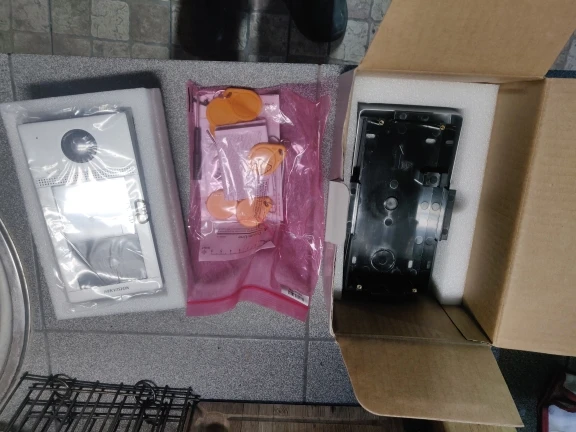

Delivery arrived ahead of schedule. Serious and helpful seller. The product looks good. In the next few days, as soon as I have Bed the instructions, I will proceed to the configuration and assembly.
It works as it suppose to work, 100 %. It was a good buy, recommend.
polecam.😂😂😄😄😂😄😂😂😄😄😄😄😄😄😄😄😄😄😄😄😄😂😄😄😅😅😅😅😄😄😄😄😂😄😄😄😄😄😄😄😄😅😄😄😄😄
Super Hikvision product, Everythink is working wery well. It is original product. I recomanded this seller.

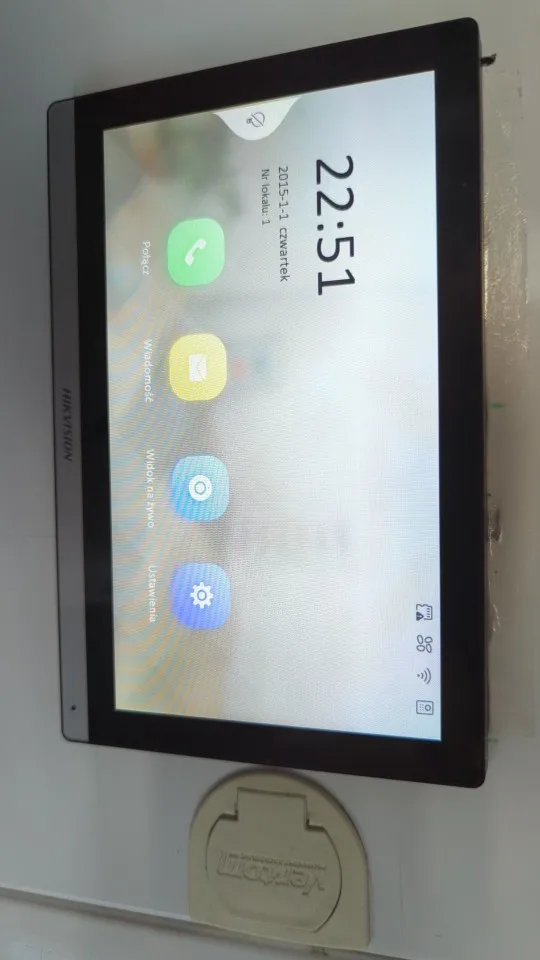

Fast shipping but did not deliver at the address but at a DHL pickup point, arrived in perfect condition and is what expected, one point that should improve is the monitor of the indoor unit could have better image quality.
