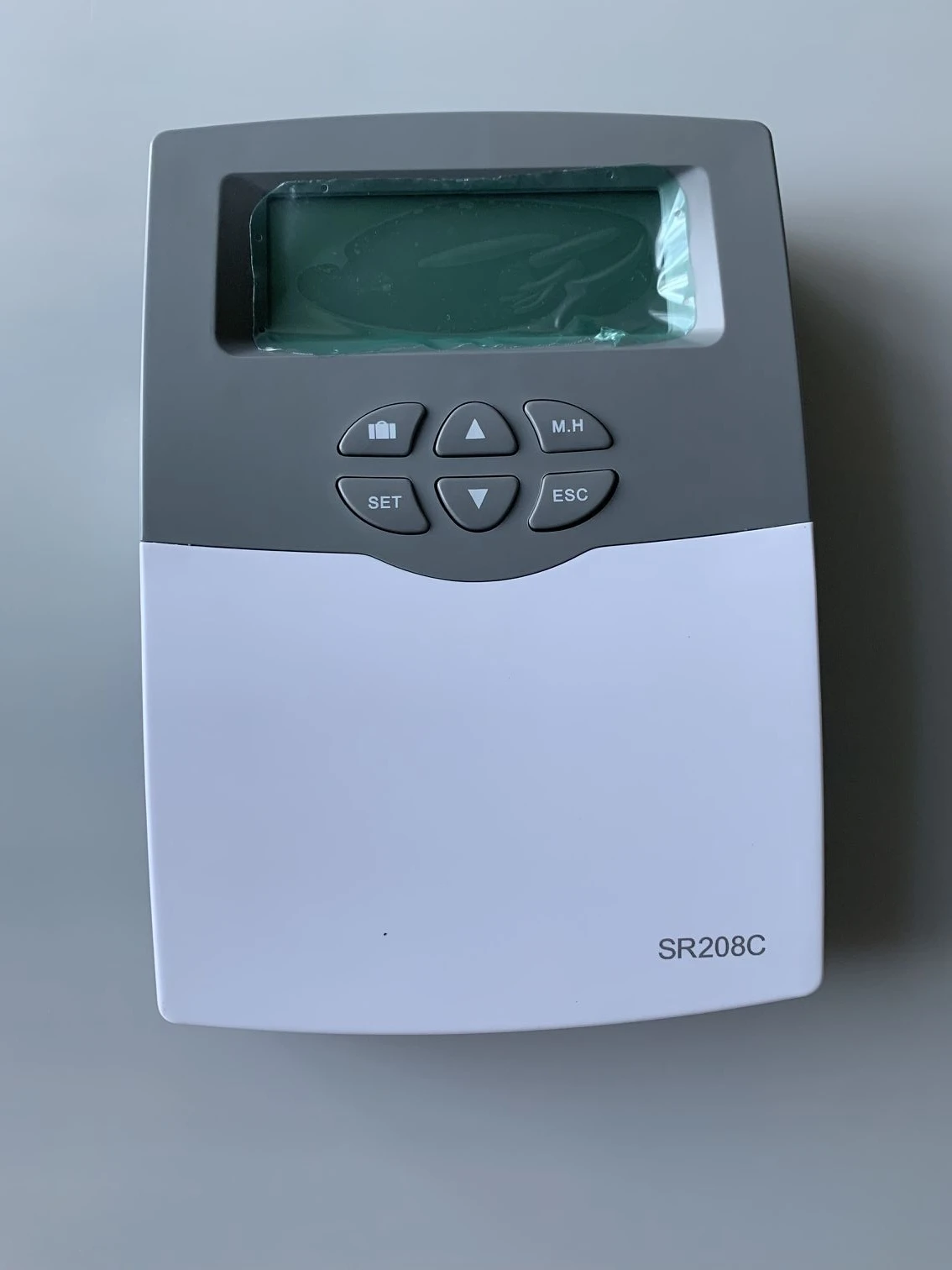

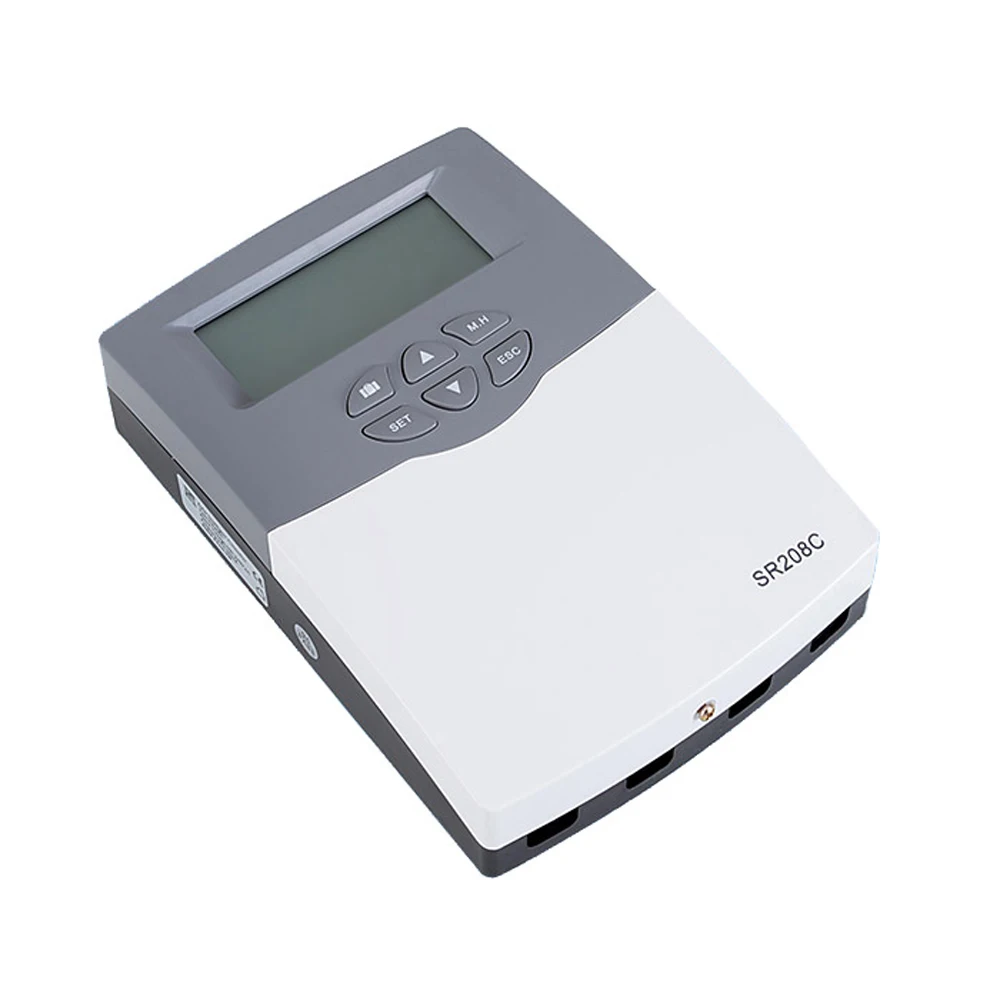

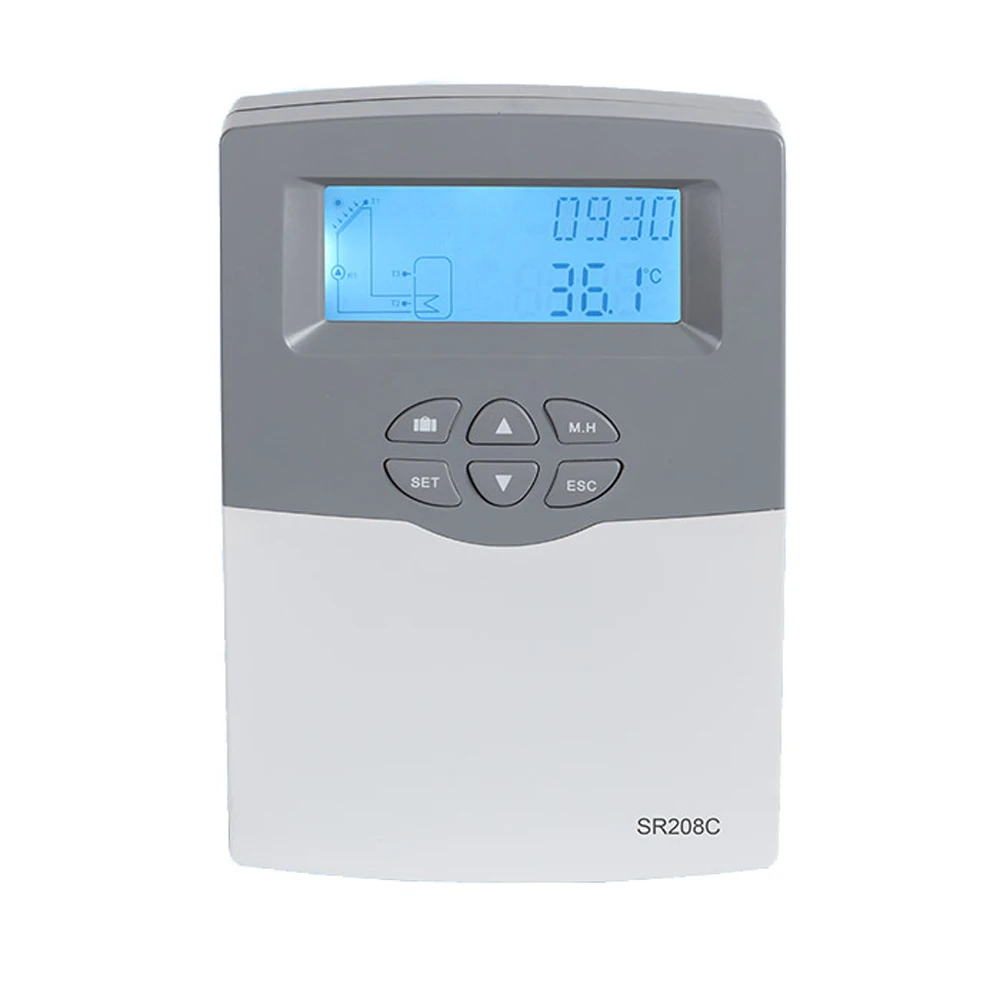

SR208C Solar Water Heater with WIFI Function Optional Temperature Difference Controller for Split Solar Water Heating System

Product Description

SR208C Solar Controller WIFI Remote Control Optional AC100-240V for Split Solar Heating System
Please be noted that there are two items in this link and they SR208C and SR208C WIFI.

Please choose proper model you need and pay it accordingly.

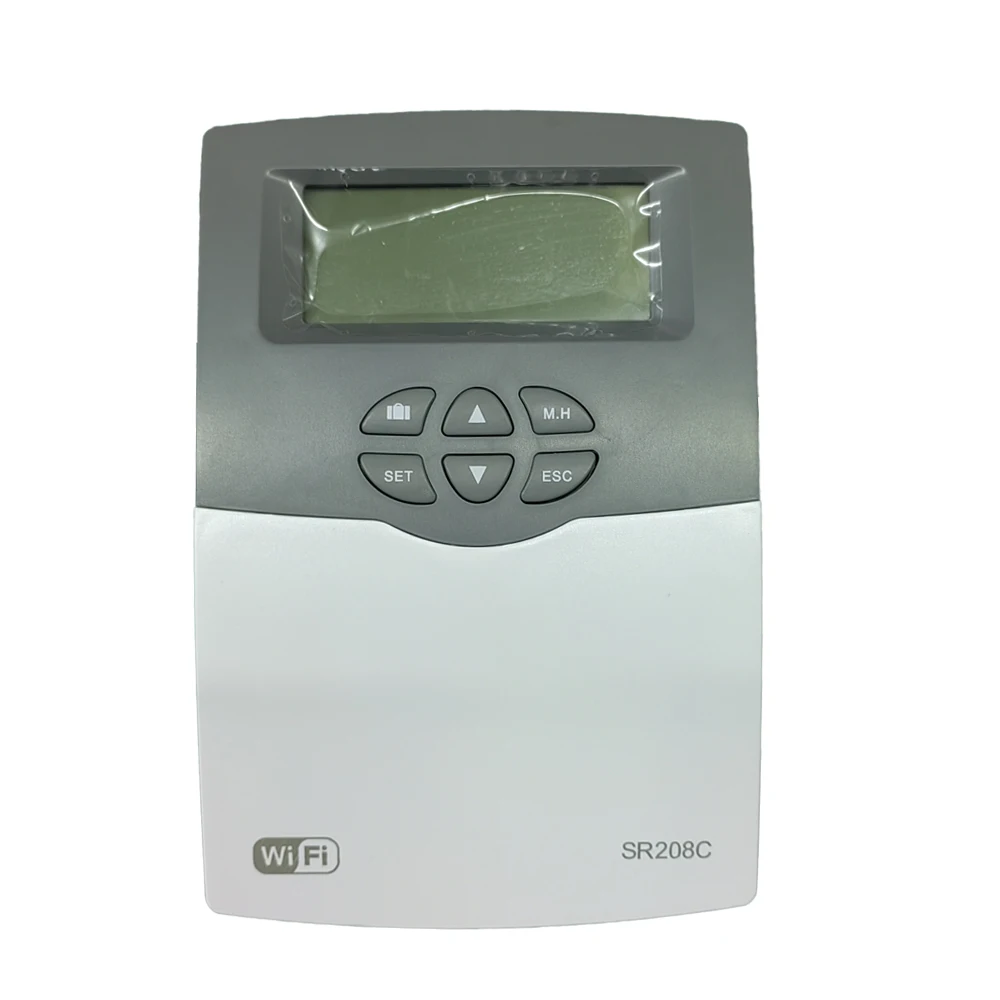

If you need SR208C with WIFI function, please choose Color SR208C WIFI and place the order

Introduce:
A BRIEF DESCRIPTION
Temperature measurement accuracy:0.1
Conventional/HE pump both available on
APPLICATIONS CAPACITY
Max.number of collectors:1
Max.number of storage tanks:1
Max.number of relays:2
Max.number of sensors:3
Max.number of visualization application system:1
Main technical data:
Size of Controller:178mm x120mm x43mm
Power supply:AC100-240V50-60Hz. .
Power consumption: < 2.5W
Accuracy of temperature measuring: ± 0.1oC
Range of collector temperature measuring: -10oC ~220oC
Range of tank temperature measuring: 0oC ~110oC
Suitable power of pump: 1 pump possible to be connected output power < 300W .
Suitable power of HK (backup heating): 1pc ˂500W .

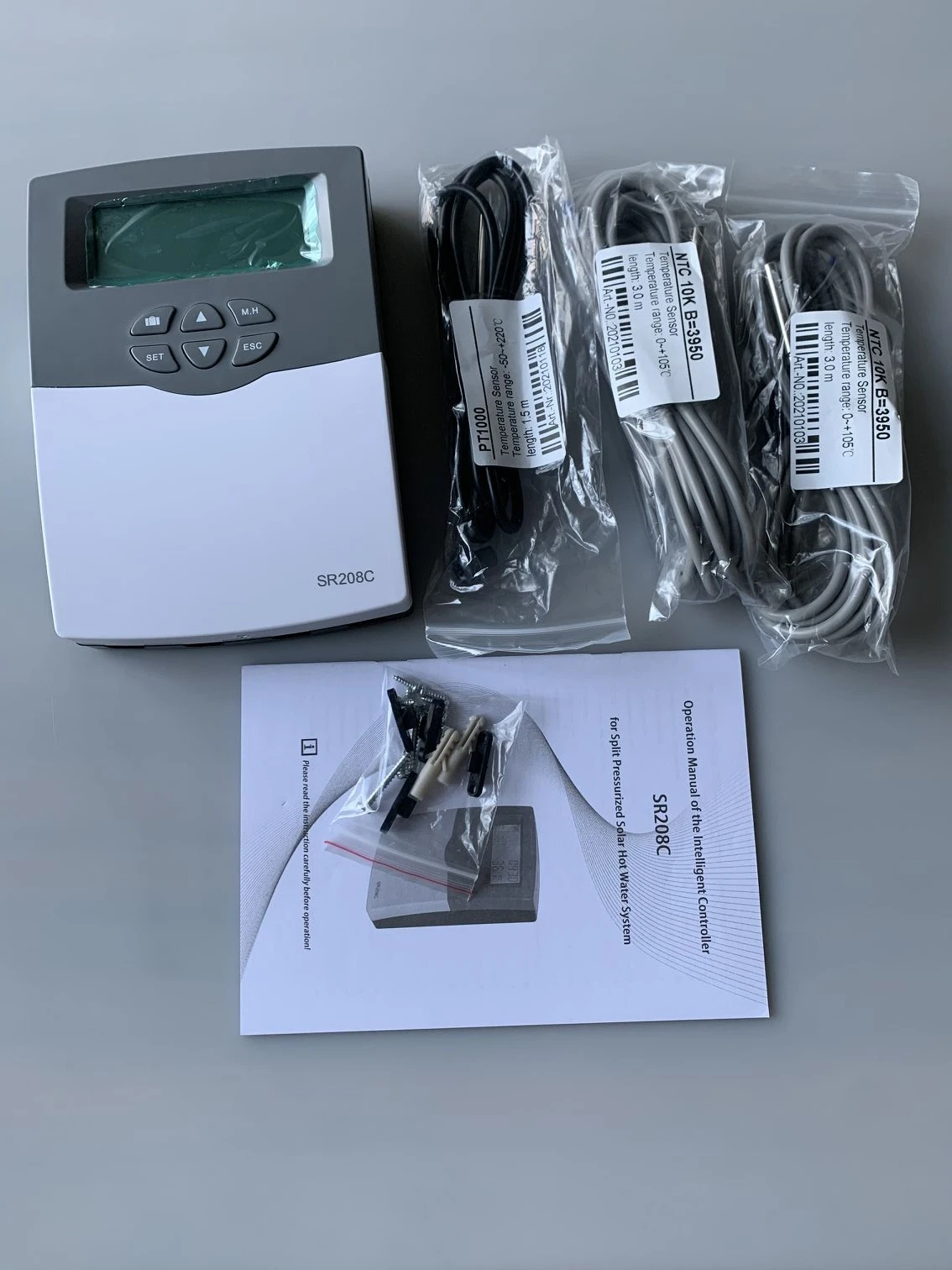

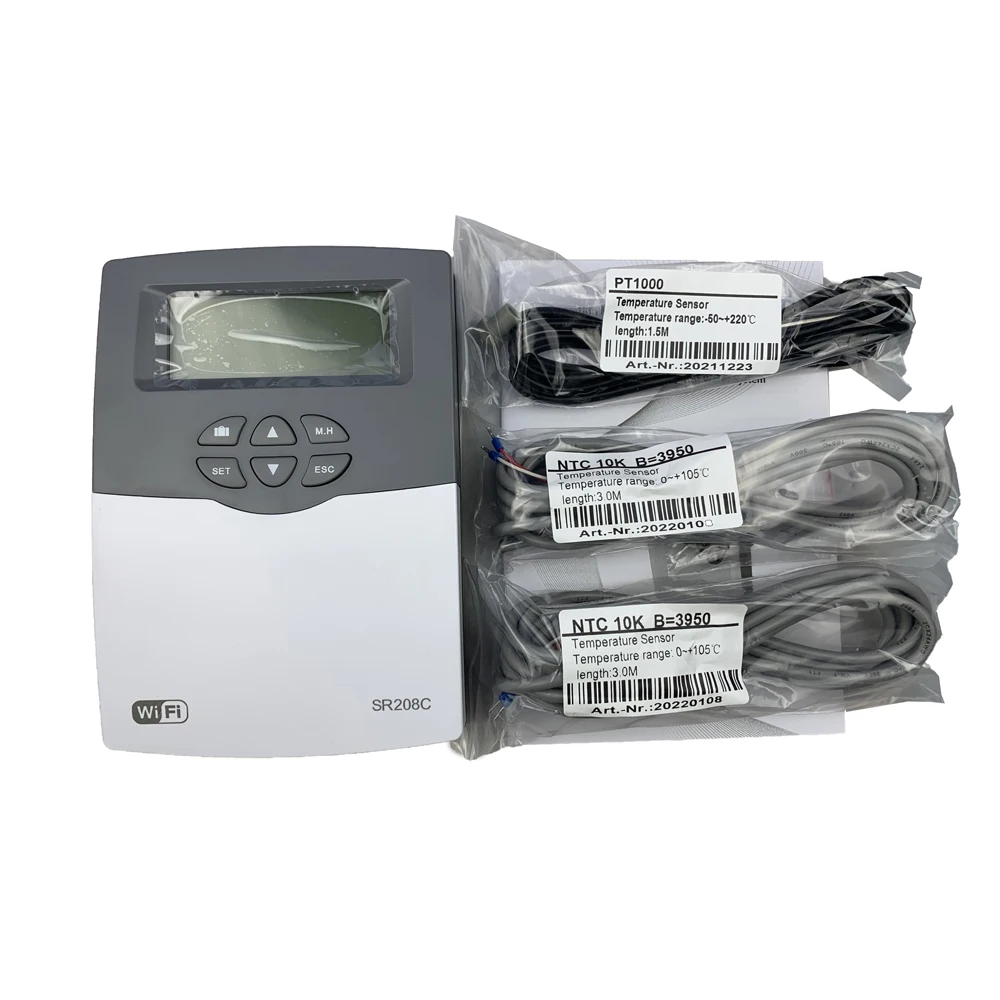

Inputs: 3 sensors
1pcs*Pt1000 sensor (≤500oC) for collector (silicon cable≤280oC)
2pcs*NTC10K B3950 sensor (≤ 135oC) for tank (PVC cable ≤105oC)
Outputs:2 relays for circulation pump and backup heating
Ambient temperature:-10oC ~ 50oC.
Water proof grade: IP41
Main functions:
AH Afterheating/thermostat
Password protection
LOAD Tank heating
OCEM Collector emergency shutdown
OCCO Collector cooling
OCMI Collector minimum temperature
OCFR Antifreeze
OTCO Tube collector
PUMP Pump control mode
OSYC System cooling
OSTC Tank cooling
MAN Manual mode
BLPR Blocking protection
OTDI Thermal Disinfection
UNIT C-F switch
BEEP beeper fault warning
Memory function
Screen protection
Trouble checking
